Fits all Gen 3/4 LS 4.8 5.3 5.7 6.0 6.2 including LS1 LS6 LS2 LQ4 LQ9
Fitment :
Fits 1999-13 GM LS Truck Applications
Fit for LS1, LS2, LS3, LS6, LS7, LS9 LSX Engines
For 1999-2002 Camaro and Firebird
For 2010-2013 Camaro
For 1999-2013 Corvette
For 2004-2006 Pontiac GTO
For 2004-2007 Cadillac CTS-V
For 2008-2009 Pontiac G8
For 2000-2013 Tahoe, Yukon, Escalade
For 2003-2009 H2 Hummer
For 1999-2013 Silverado and Sierra (4.8L, 5.3L, 6.0L)
Specification:

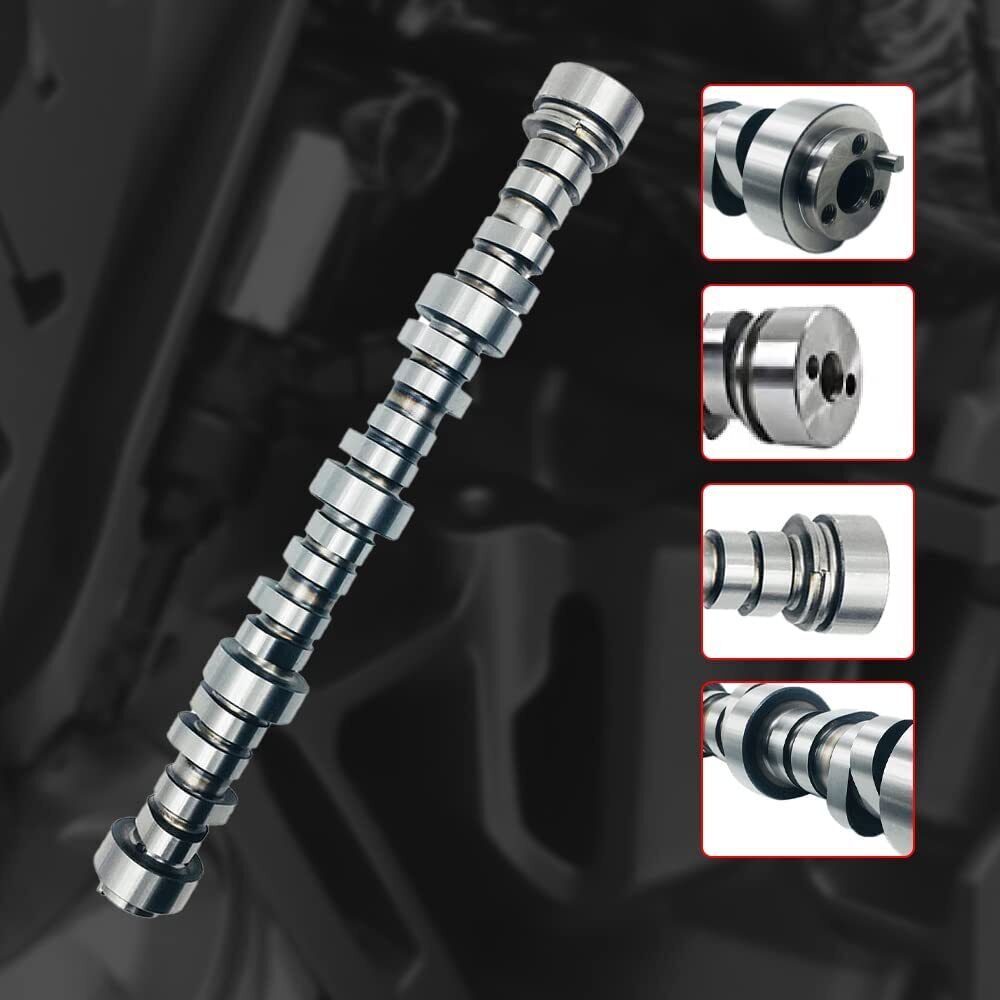

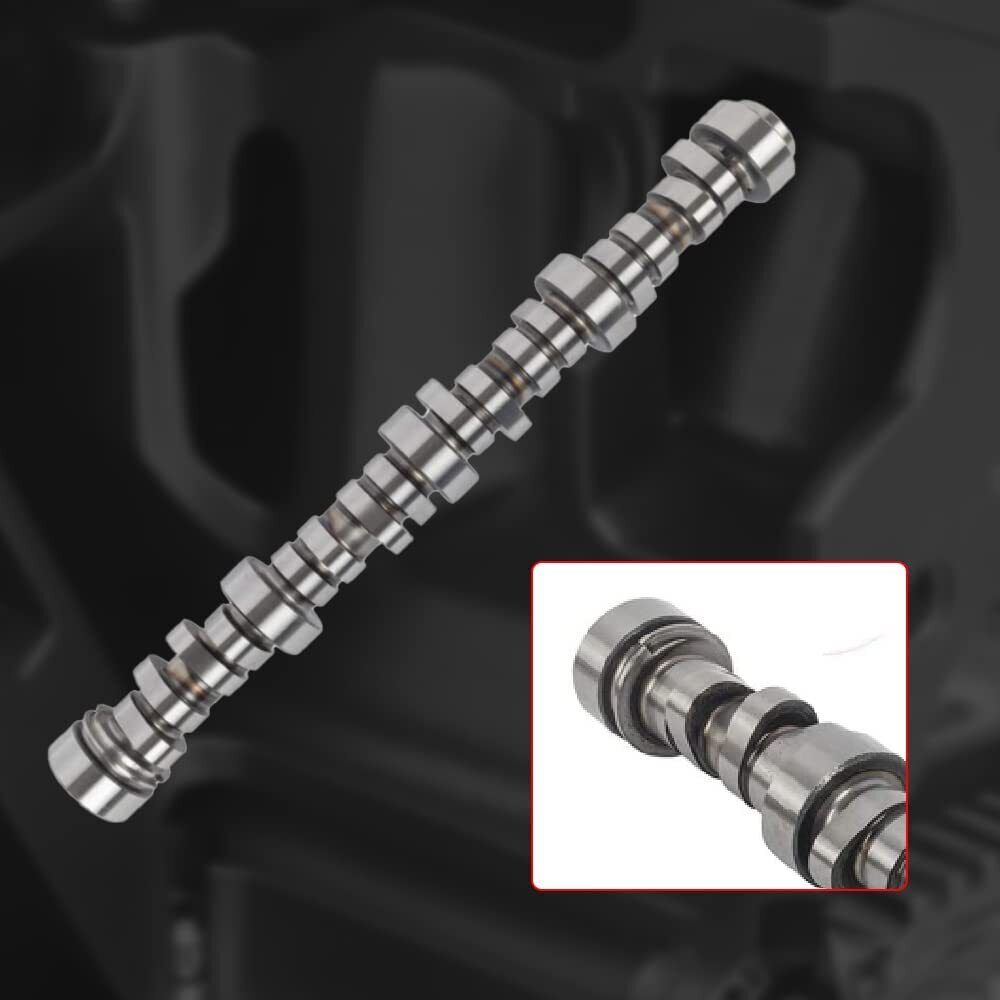

*1. Camshaft Compatibility:
for Chevy LS-Series Engine 1997-Up
Not for use with AFM/DOD
Camshaft RPM Range: 2200 to 5400 RPM
Camshaft Intake Valve Lift: .585"
Camshaft Exhaust Valve Lift: .585"
Camshaft Advertised Intake Duration: 283°
Camshaft Advertised Exhaust Duration: 286°
Camshaft Intake Duration at .050": 228°
Camshaft Exhaust Duration at .050": 230°
Camshaft Lobe Separation: 112°
Camshaft Intake Centerline: 108°
Camshaft Cam Gear Attachment: 3-Bolt
*2. Number of Springs Per Valve: Single
Outside Diameter of Outer Spring (in): 1.290 in.
Spring Coil Bind Height (in): 1.140 in.
Damper Spring Included: No
Spring Install Load: 130lbs
Spring Install Height: 1.800"
Spring Open Height: 1.175"
Spring Open Load: 318 lbs
Spring Rate (lbs/in): 313 lbs./in.
Inside Diameter of Outer Spring (in): 0.885 in.
Valve Spring Style: Beehive
Package Include:

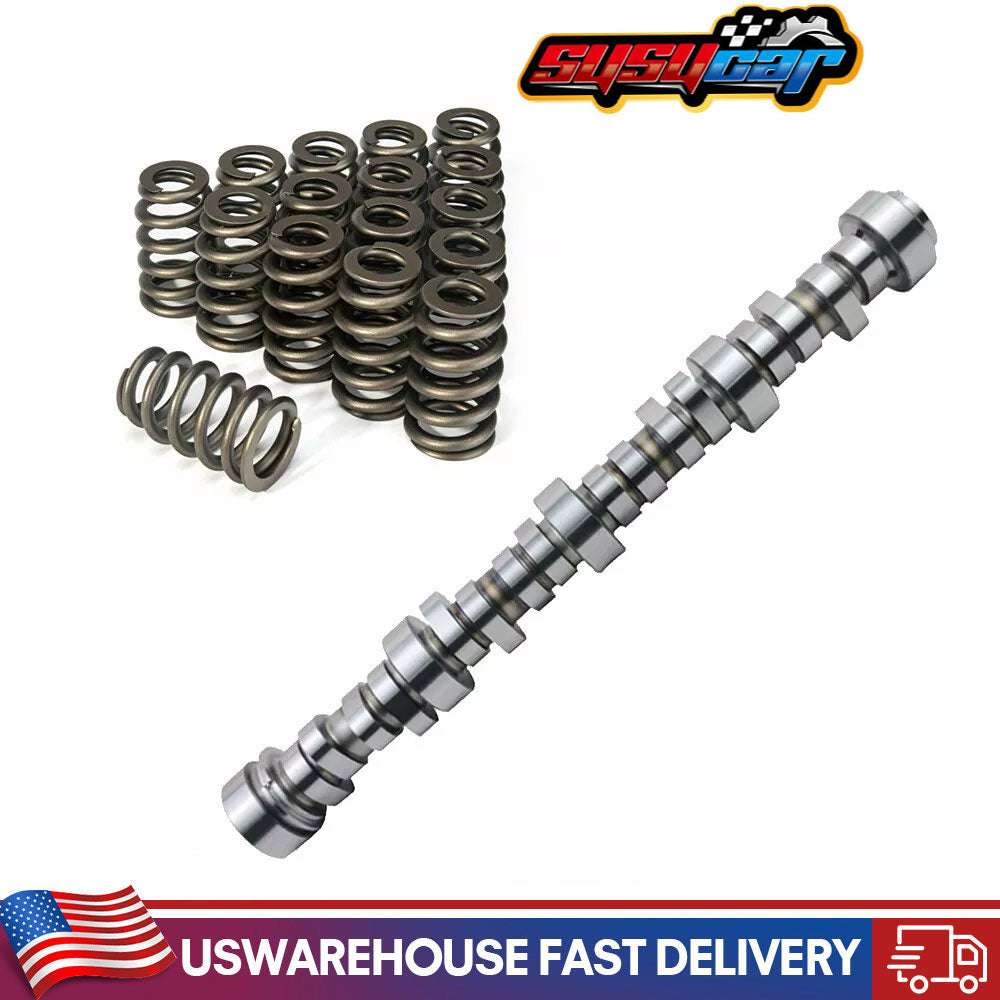

Camshaft + 16pcs Spring Set:
1*E1840P Camshaft + 16pcs Matching Pac 1218 Springs
Dear customers
√ Please leave us your vehicle information or vin message when purchasing, we will check whether your vehicle is suitable for this product
√ Delivery time: 3 to 5 working days
√ In case of delay, please consult us in advance and we will reply as soon as possible
√ Please contact us before opening returns or neutral/negative feedback, so that we can help solve your problems
